G657A1 FTTH Fiber Optic Cable , 1310nm SC LC Connector Indoor Drop Cable

Product Categories
Wuhan Weiruo Communication Tech. Co.,Ltd
Contact Now

G657A1 FTTH Fiber Optic Cable , 1310nm SC LC Connector Indoor Drop Cable

  • 1
  • 2
  • 3

Brand Name : WRC-GJYXFCH G657A SM 1 Core Fiber Optic FTTH Drop Cable 1KM / Fibra Drop

Model Number : GJYXFCH

Certification : ISO9001

Place of Origin : Hubei, China

MOQ : 100

Price : USD100-USD1030/Km

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 1000 Km per Day

Delivery Time : 5-20 days

Packaging Details : Export Carton Packing

Name : GJYXFCH G657A SM 1 Core Fiber Optic FTTH Drop Cable 1KM / Fibra Drop

Wavelength : 1260 to 1650nm

Type : fiber optic plc splitter, 1x2 1x4 1x8 1x16 2x8 2x16

Connector : SC LC

Cable Type : G657A1 or as customers' order

Operating temperation : -40℃ to 85℃

No. of Fiber : 2 4 8 16

Usage : FTTH

Contact Now

GJYXFCH G657A SM 1 Core Fiber Optic FTTH Drop Cable 1KM / Fibra Drop

Description

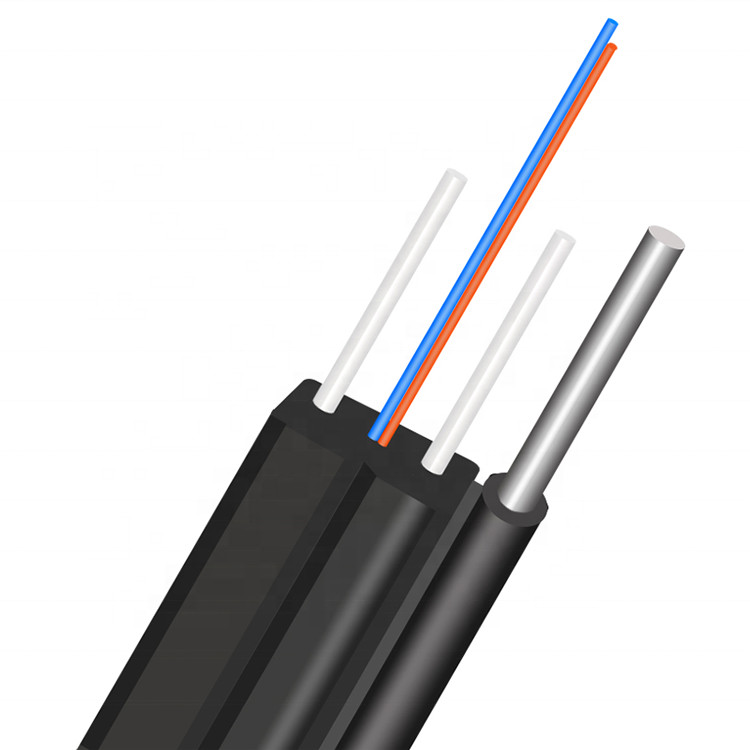

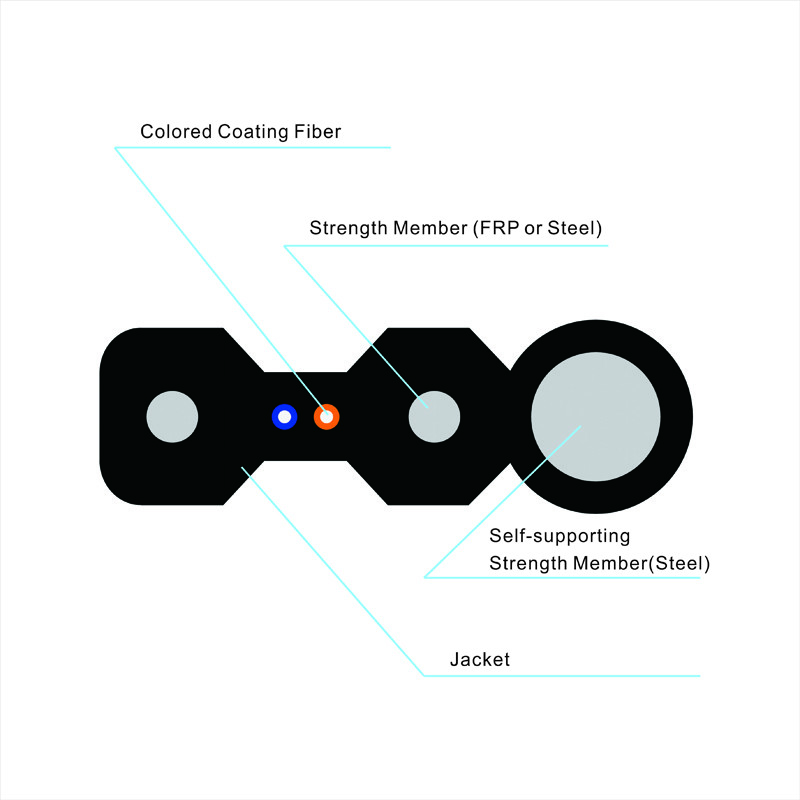

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced (FRP) are placed at the two sides. Then, the cable is completed with a black or color LSZH sheath.

Features

1,Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

2,Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.

3,Simple structure, light weight and high practicability.

4,Novel x0019 design, easily strip and splice, simplify the installation and maintenance.

5,Low smoke, zero halogen and x0019 retardant sheath.

Item
Technology parameter
Cable Type
Drop Cable
Cable Count
1 2 4 6 8 12
Fiber Color
Green, Yellow
Fiber Type
9/125 (G657A1)
Outer Sheath Color
Black or white
Sheath Material
LSZH
Cable Dimension (mm)
3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)
Cable weight (Kg/km)
15
Min. bending radius (mm)
10 (Static) 25 (Static) 30 (Static) 60 (Static)
Attenuation (dB/km)
≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
Short term tensile (N)
200; 600
Crush resistance (N/100mm)
1000; 2200
Operation temperature (℃)
-20~+70℃
G.652D Single Mode Optical Fiber (B1.3)
Item
Standard
Unit
Attenuation
1310nm
≤0.35
dB/km
1383nm
≤0.33
dB/km
1550nm
≤0.21
dB/km
1625nm
≤0.24
dB/km
Dispersion
1288nm～1339nm
|D|≤3.4
ps/(nm·km)
1271nm～1360nm
|D|≤5.3
ps/(nm·km)
1550nm
≤17.8
ps/(nm·km)
Zero-dispersion wavelength
1300～1322
(nm)
Zero-dispersion slope
≤0.091
ps/(nm2•km)
PMD
PMD single fiber
≤0.15
ps/√km
PMD Q links
≤0.08
ps/√km
MDF
1310nm
9.2±0.4
um
Cladding diameter
125±1.0
μm
Cladding non-circularity
≤0.8
%
Core-cladding concentricity error
≤0.6
μm
Coating diameter
245±10
μm
Cladding/coating concentricity error
≤10.0
μm
Cut-off wavelength
1.18～1.33
μm
Macrobend attenuation
(ф 50mm, 100 cycles)
1550nm
≤0.05
dB
1625nm
≤0.05
dB
Bending radius
≥5
m
Dynamic fatigue parameters
≥20
nd
Additional Attenuation
@1310nm &
@1550nm
Temperature cycling test:
(-60℃～85℃, 3 cycles)
≤0.03
dB/km
Water soak test:
(23℃ for 30 days)
≤0.03
dB/km
Damp heat test:
(85℃, 85%RH for 30 days)
≤0.03
dB/km

Thermal aging test

(85℃ for 30 days)
≤0.03
dB/km
Warm water soak test: (60℃ for 15 days)
≤0.03
dB/km

G657A1 FTTH Fiber Optic Cable , 1310nm SC LC Connector Indoor Drop CableG657A1 FTTH Fiber Optic Cable , 1310nm SC LC Connector Indoor Drop CableG657A1 FTTH Fiber Optic Cable , 1310nm SC LC Connector Indoor Drop Cable
