Outdoor Aerial Ftth Figure Gyxtc8s 24 12 Core Optical Cable Fiber Self Supporting

Brand Name : WRC

Model Number : Self Supporting Outdoor Aerial Ftth Figure Gyxtc8s 24 12 Core Optical Cable Fiber

Certification : ISO9001/CE

Place of Origin : Hubei, China

MOQ : 2000 Meters

Price : USD100-USD300/Km

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 1000 Km per Day

Delivery Time : 5-20 days

Packaging Details : Export Carton Packing

Fiber type : G652D

Fiber count : 24F

Type : Fiber Optic Cable

Cable Diameter : 9.8*18.5mm

Strength member : Steel wire

Installation : Self-supporting/Aerial

Application : Long distance communication system

Messenger member : Steel wire

Fiber options : ITU G652D ,G657A,OM1,OM2,OM3,OM4

Color : Customized

Contact Now

Self Supporting Outdoor Aerial Ftth Figure Gyxtc8s 24 12 Core Optical Cable Fiber

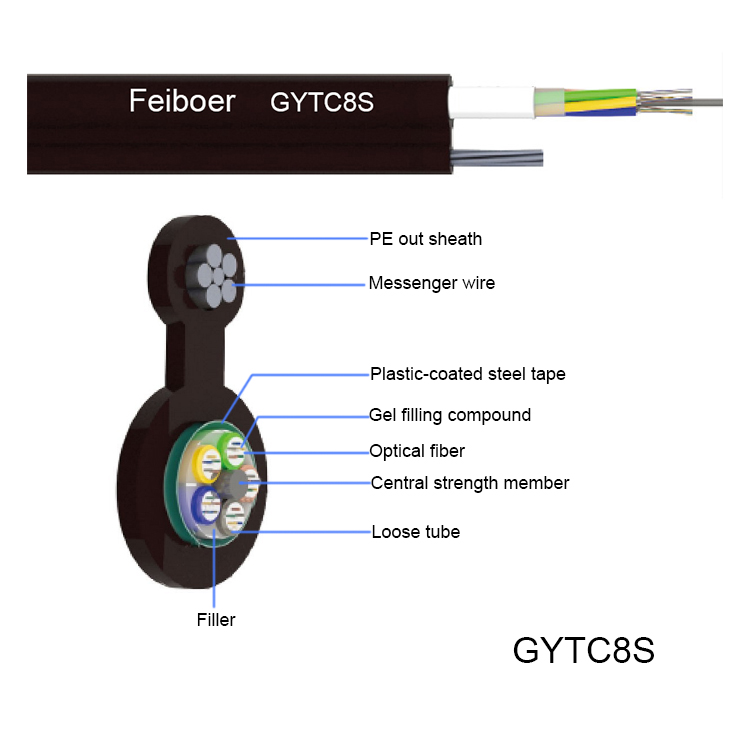

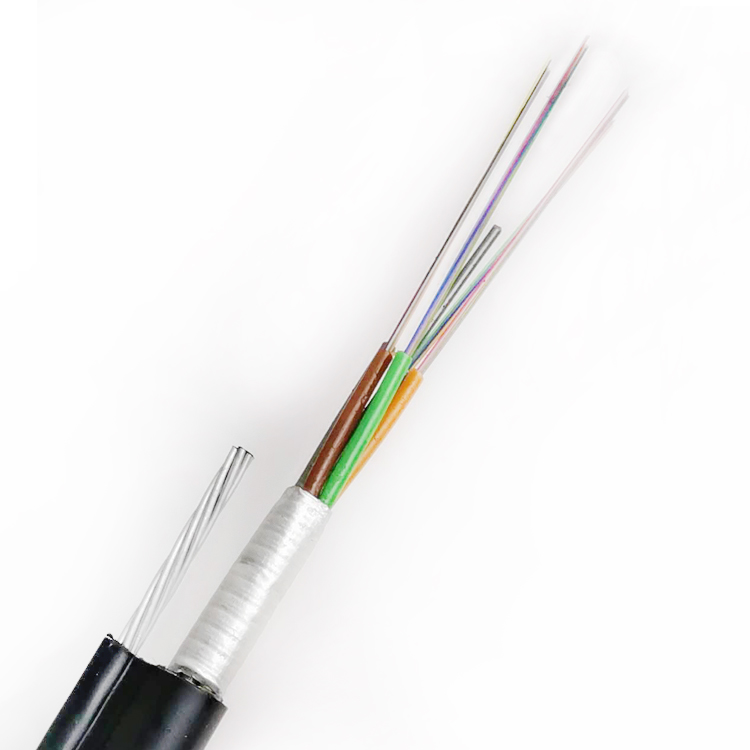

The structure of GYTC8S cable is to put 250µm optical fiber into loose tube made of high modulus material, which is filled with waterproof compound. The cable core is wrapped in a plastic-coated steel (PSP) and integrated with the steel strand into an 8-figure polyethylene sheath. Figure-8 self-supporting structure provide high tensile strength and enables easy and cost saving aerial installations.

Product Characteristics

• Steel wire strands have extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs

• With good mechanical properties and temperature characteristics

• Material of loose tube has good hydrolysis resistance and high strength.

• The loose tube is filled with special gel, which protect the optical fiber

• Take the following measures to ensure the waterproof performance of the optical cable

-Single metallic wire center reinforced core

-Filled with special Water-blocking material in loose tube

-Complete cable core filling

- Moisture-proof layer of plastic-coated steel (PSP)

Applications

• Overhead

Structural Parameter

Model	Fiber count	Tube count	Filling rope count	Weight (kg/km)	Tension (N)	Crush (N/100mm)	Bending Radius Static / dynamic (mm)
GYTC8A-2~6Xn	2~6	1	4	158	According to the diameter of suspension wire	300/1000	10D/20D
GYTC8A-8~12Xn	8~12	2	3	158
GYTC8A-14~18Xn	14~18	3	2	158
GYTC8A-20~24Xn	20~24	4	1	158
GYTC8A-26~30Xn	26~30	5	0	158

Fiber Type	Fiber attenuation(+20℃)				Band Width		Numerical aperture	Cut-off wavelength of optic fiber cable
Fiber Type	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	Numerical aperture	Cut-off wavelength of optic fiber cable
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---	≤1260nm
G.655	---	---	≤0.40dB/km	≤0.23dB/km	---	---	---	≤1450nm
50/125µm	≤3.3dB/km	≤1.2dB/km	---	---	≥500MHz·km	≥500MHz·km	0.200±0.015 NA	---
62.5/125µm	≤3.5dB/km	≤1.2dB/km	---	---	≥200MHz·km	≥500MHz·km	0.275±0.015 NA	---

FAQ

1.Are you the real manufacturer?

Yes. We are the real manufacturer with more than 560 staff.

2.How many years have you been in the field of fiber optics ?

Since 2001.

3.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?

25 years for fiber optic cable

5.Which kind of certification you have ?

ISO9001, SGS, CIQ.

6.What is your delivery time?

Usually within 2-30 working days

7.What is your payment way?

T/T, L/C, Western Union and Paypal.

8.Can you supply customized products and logo?

Yes. We supply OEM&ODM service. You can send us your drawing.

Drawings of GYFTC8Y Non-metallic Self-supporting Outdoor Figure 8 Fiber Optic Cable
